Large Format Laser Marking Machine
HITEC Laser Large Format Laser Marking Machines are engineered for manufacturers who need precise marking on oversized metal parts and industrial components. Featuring a robust XY gantry moving system, our fiber laser solutions process large metal sheets, elevator panels, molds, and industrial components with consistent accuracy while eliminating stitching errors commonly found in large-area marking applications.
Our Large Format Laser Marking Solutions
Every large-format application is different. Choose the gantry configuration that matches your workpiece weight, factory layout, and safety requirements — or ask us to build a custom size around your part.
An elevated worktable built for bulky, heavy workpieces — load and position parts without extra lifting equipment or bending over the table.
A low-profile worktable optimized for thin sheet stock and wide flat panels, keeping the material fully supported across the entire marking field.
A fully enclosed housing that meets laser safety class requirements for continuous, unattended operation on the factory floor.
What Is Large Format Laser Marking Machine?
A Large Format Laser Marking Machine is an industrial laser marking system designed for marking, engraving, and processing oversized workpieces.
Unlike conventional fiber laser marking machines with limited marking areas, large format laser marking systems use an extended XY gantry moving structure to move the laser head across a larger working area. This allows manufacturers to directly process large metal sheets, elevator panels, molds, industrial components, and customized parts without dividing the artwork into multiple sections.
For large-area applications, traditional galvo laser systems often require stitching multiple marking fields together, which may cause alignment errors, visible connection lines, and inconsistent marking quality. HITEC large format laser marking machines overcome these limitations by providing stable motion control and continuous marking across the entire workpiece.
HITEC Laser provides customizable large format laser marking areas ranging from compact industrial sizes such as 600×600mm (24×24 inch) to large-scale systems including 1300×2500mm (4×8 ft) and beyond. Our XY gantry laser marking machines are engineered for manufacturers who require high precision, consistent results, and reliable long-term production performance.
Large Format Laser Marking Machine vs Standard Laser Marker
| Feature | Standard Fiber Laser Marker | Large Format Gantry Laser |
|---|---|---|
| Working Area | Small / Medium | Large, Customized Area |
| Large Metal Sheets | Limited | Excellent |
| Stitching Requirement | Possible | No Stitching |
| Heavy Workpieces | Difficult | Suitable |
| Industrial Production | Medium | High Efficiency |
| Custom Size | Limited | Flexible |
Why Choose HITEC Laser XY Gantry System?

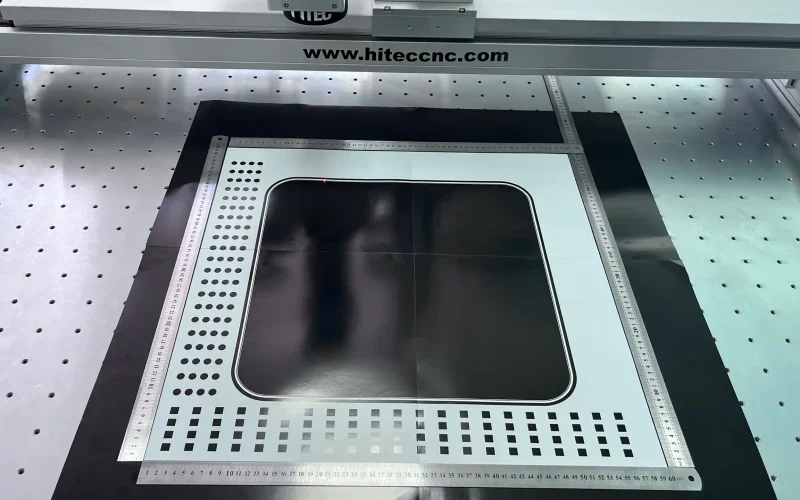

No Stitching Error
Continuous marking across large workpieces eliminates the alignment problems and visible connection lines often caused by multiple stitching processes.

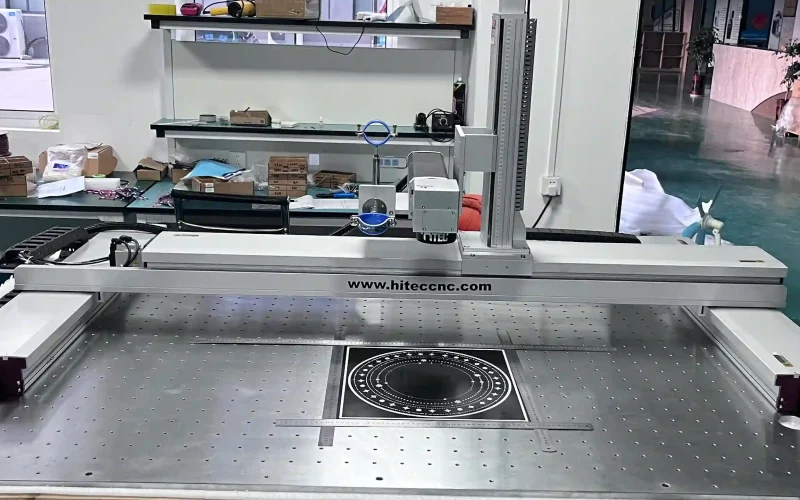

Custom Large Working Area
Available working areas from 600×600mm to 1500×3000mm and beyond, with customized solutions according to your production requirements.

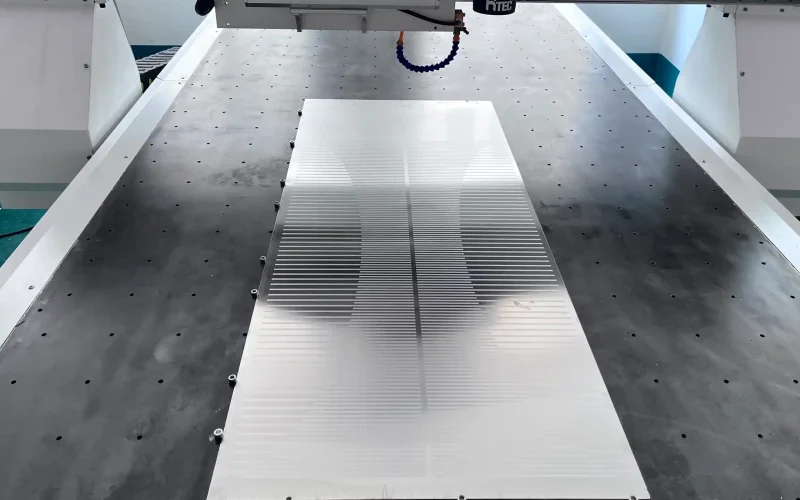

Industrial XY Gantry Structure
A rigid XY gantry system provides stable movement and consistent accuracy for heavy and oversized industrial parts.

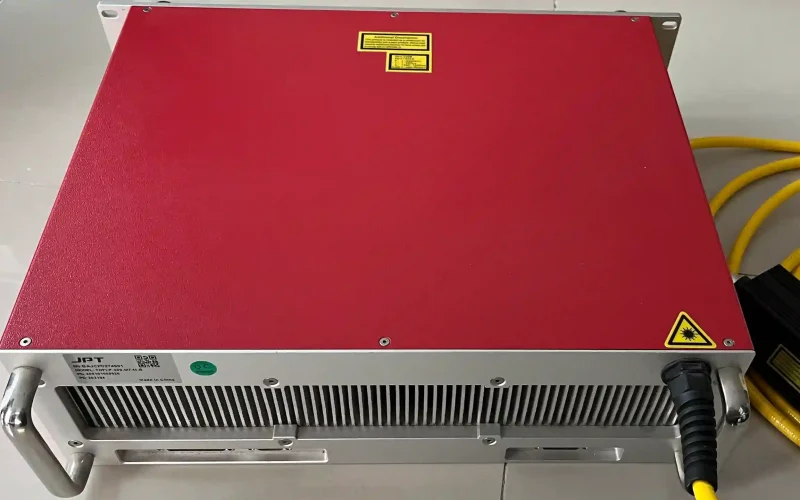

Flexible Laser Options
Compatible with JPT MOPA and IPG fiber laser sources from 50W to 500W for different marking applications.
Applications of Large Format Laser Marking
Manufacturers across metal fabrication, elevator production, mold-making, and automotive supply chains use large format gantry laser marking to mark parts that no standard-size machine can handle in one pass.

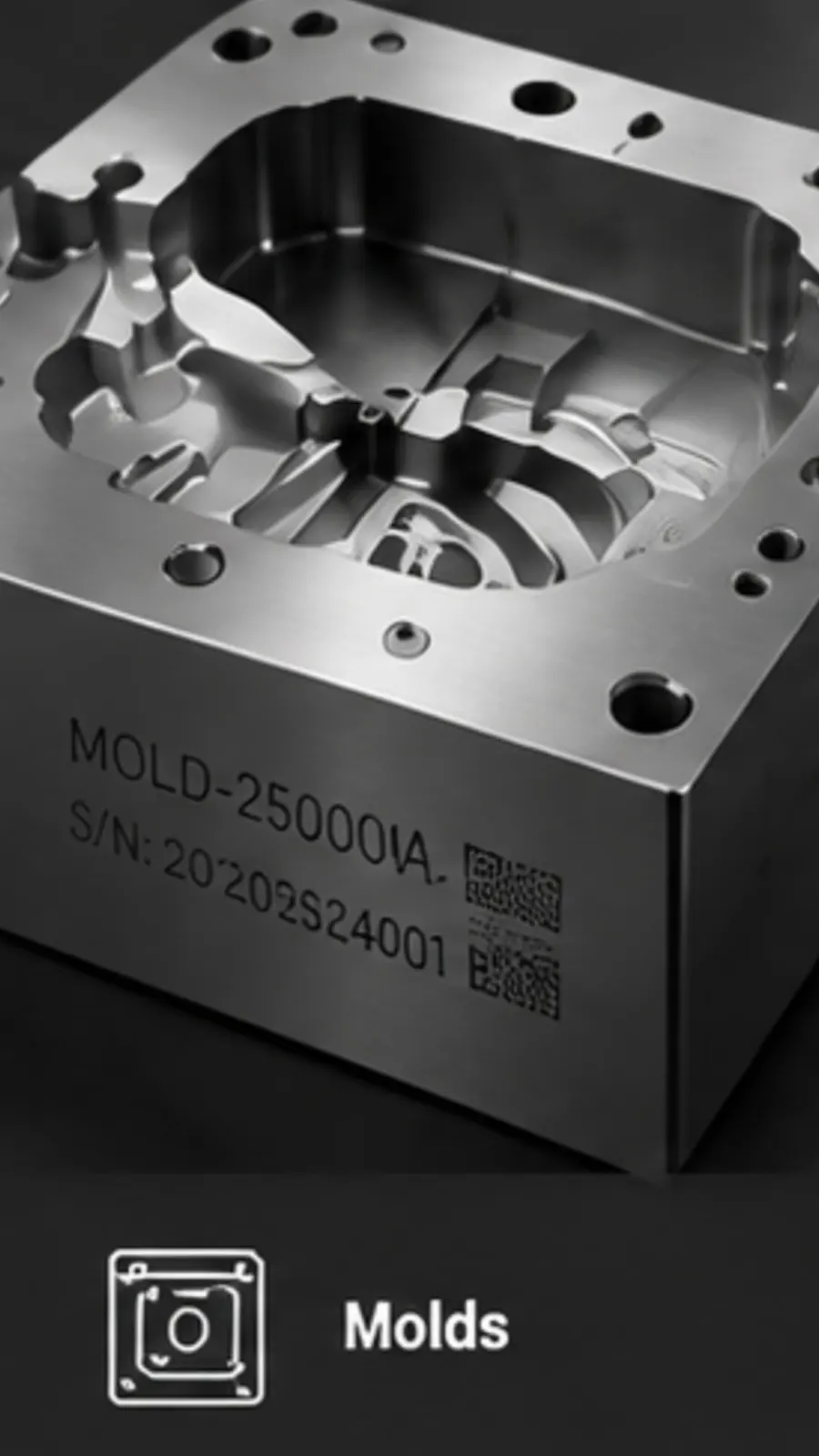

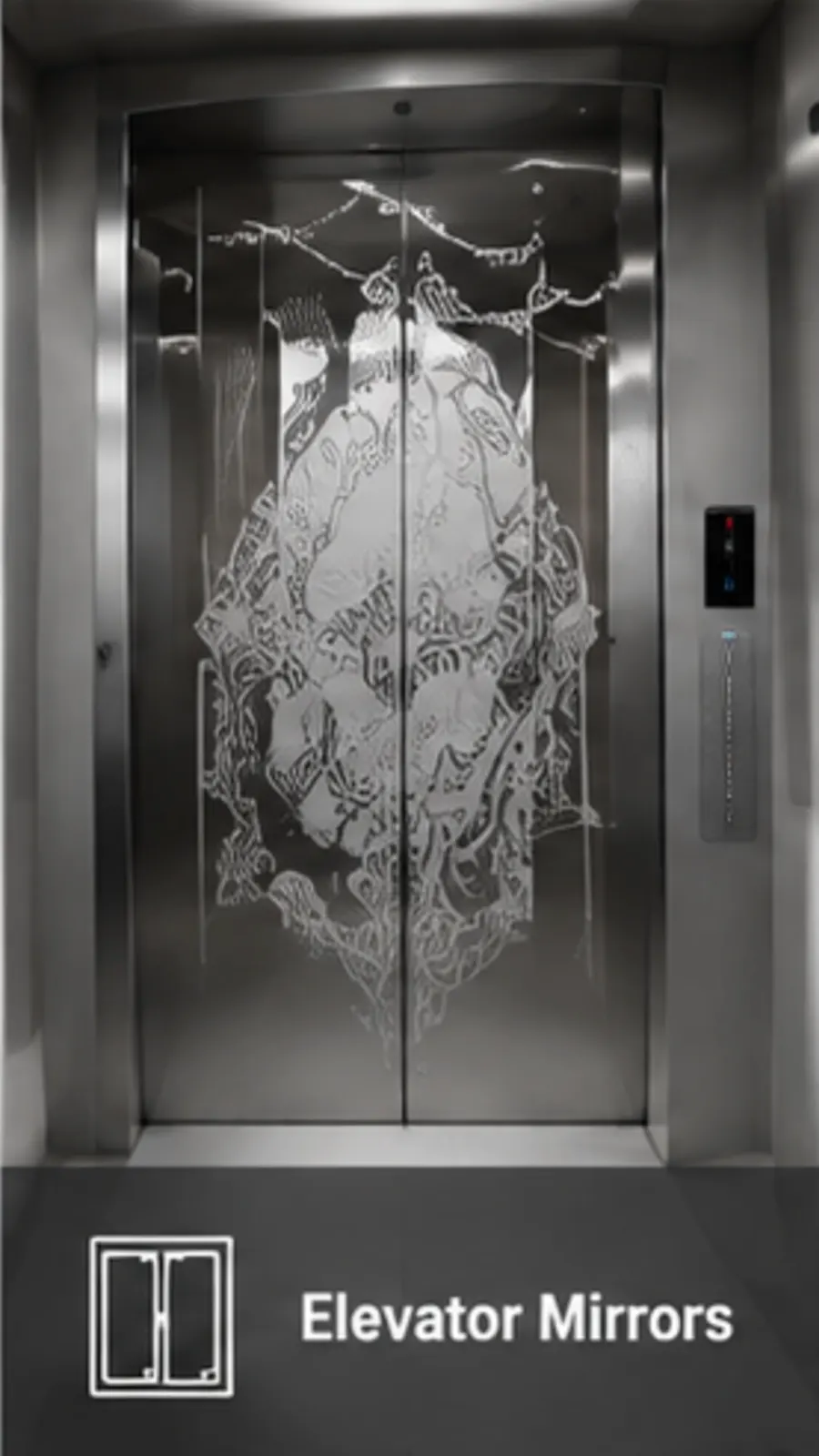

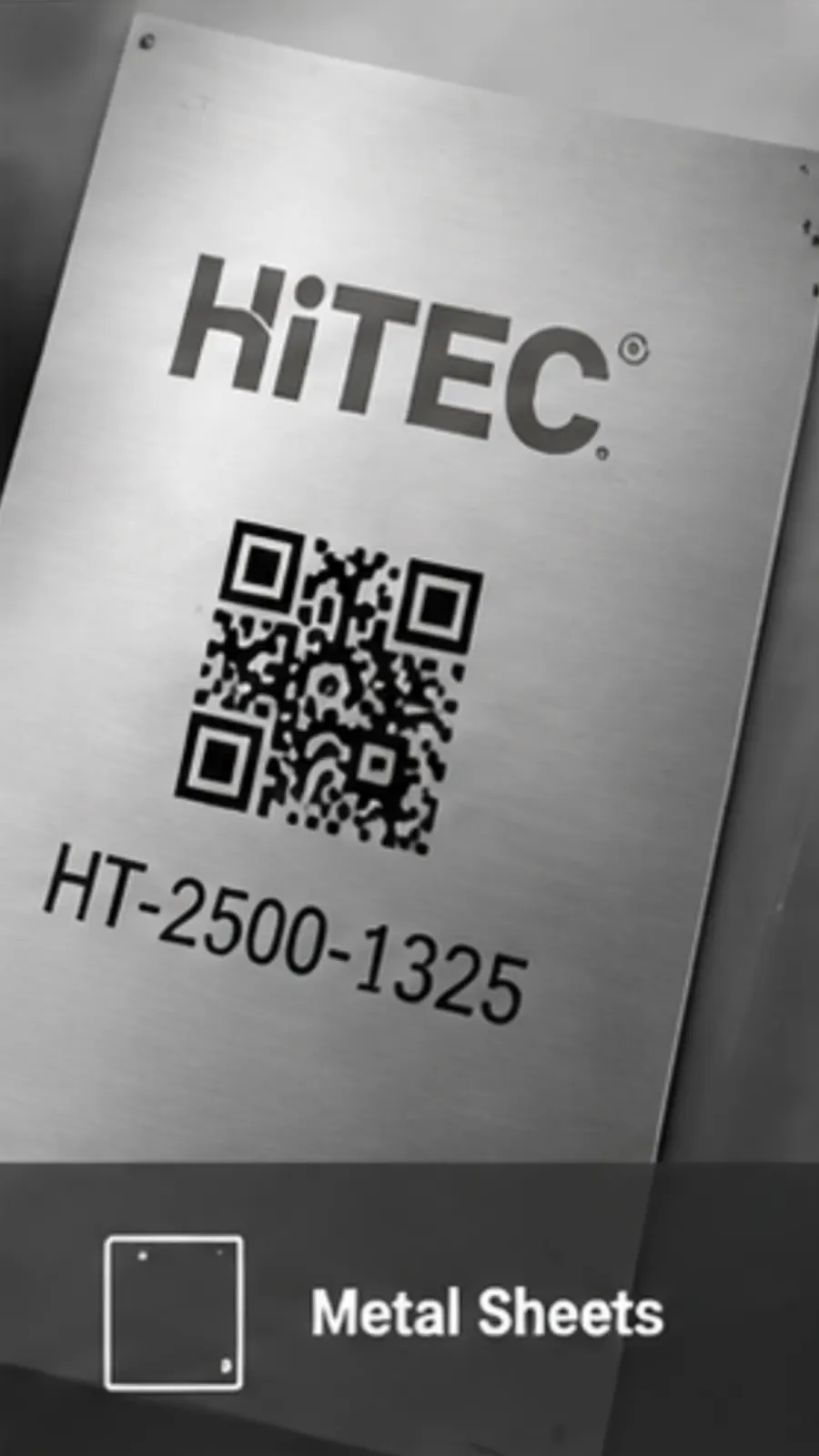

Elevator Panels Seamless marking across full-size stainless steel elevator wall and door panels. | Metal Sheets Logos, batch codes, and pattern marking on large stainless, carbon steel, and aluminum sheet. | Molds Deep, durable identification marking on large injection and stamping molds. |

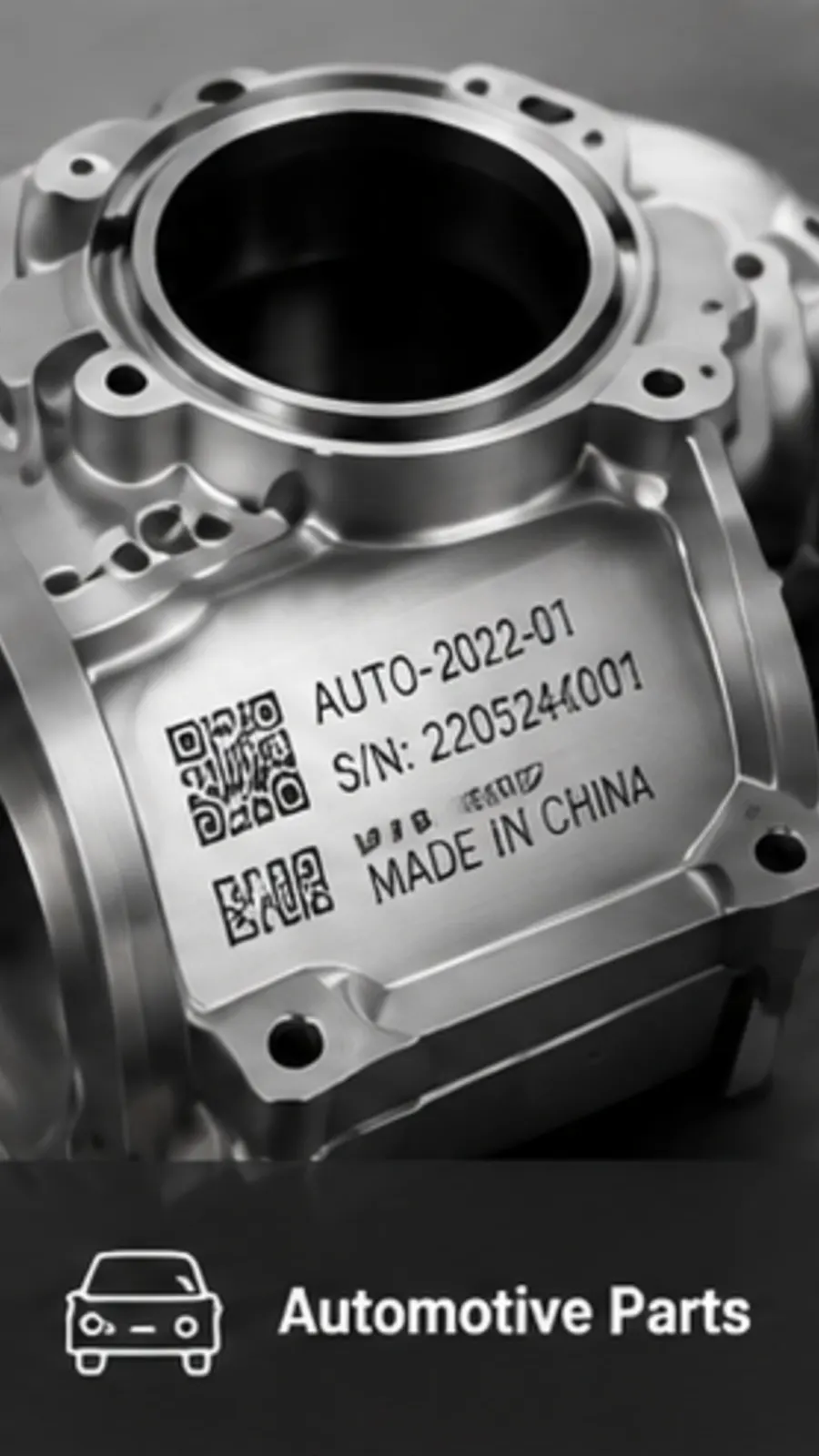

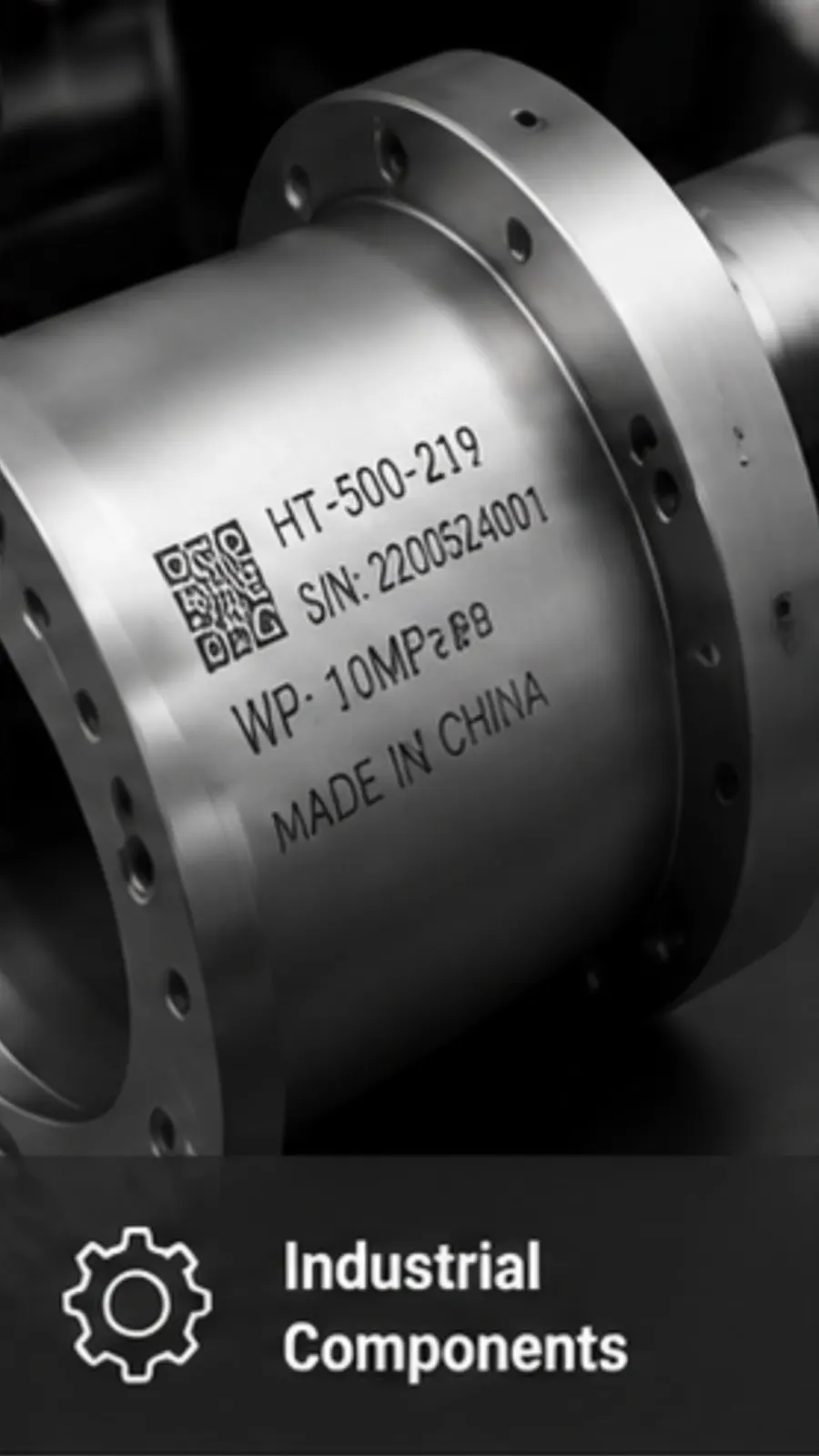

Automotive Parts Traceability codes and serial numbers on oversized automotive components. | Industrial Components Nameplates, specification data, and QR/barcodes on heavy industrial equipment. | Metal Logos Precision brand logos and decorative marking on large-format metal signage. |
Large Format Laser Marking Machine Specifications
up to 2000x3000mm
Gantry Moving System
JPT/IPG/Raycus
Stable.Accurate.Reliable
| Laser Type | Fiber Laser, UV Laser, CO2 Laser |
|---|---|
| Working Area | Available Working Areas: 600×600 mm (24×24 inch) 600×900 mm (24×35 inch) 1300×900 mm (51×35 inch) 1200×1200 mm (47×47 inch) 1300×2500 mm (51×98 inch) |
| Laser Power | 50W-500W (Fiber), 5W-10W (UV), 30W-10W CO2)） |
| Motion System | XY Gantry, XYY Gantry, XYYZ Gantry |
| Control Software | EZCAD3 / Syntec / ZEUS |
| Laser Source | JPT / IPG / Raycus |
| Auto Focus | Optional |
Specifications shown are standard configuration ranges. Exact working area, power, and control system are confirmed per order based on your part size and material. Request a full datasheet →
How to Choose a Large Format Laser Marking Machine?
How to size the working area, laser power, and table configuration for your parts.
When a fixed galvo scan field is enough, and when you need gantry motion instead.
Why multi-field marking causes misalignment, and how continuous gantry motion solves it.
Large Format Laser Marking Machine FAQ
What is a large format laser marking machine?
A Large Format Laser Marking Machine is an industrial fiber laser system designed to mark large metal parts and oversized workpieces that cannot be processed efficiently with a standard fixed galvo marking system. HITEC Laser uses a motorized XY gantry system to move the laser head across the workpiece, providing consistent marking quality over large areas while reducing stitching errors associated with multiple smaller marking fields
What is the maximum marking size?
HITEC Laser Large Format Laser Marking Machines are available in a range of working areas to match different workpiece sizes and applications, including 600 × 600 mm (23.6 × 23.6 in), 600 × 900 mm (23.6 × 35.4 in), 900 × 1300 mm (35.4 × 51.2 in), 1200 × 1200 mm (47.2 × 47.2 in), and 1300 × 2500 mm (51.2 × 98.4 in / approximately 4.3 × 8.2 ft). Custom working areas can also be configured according to the customer’s workpiece and production requirements.
Why choose a gantry laser system?
A gantry laser system is ideal for large and oversized workpieces because the laser head moves across the entire working area. Compared with conventional galvo systems that rely on multiple marking fields and stitching, a motorized XY gantry can provide continuous marking, better consistency across large surfaces, and reduced stitching errors. It is particularly suitable for large metal sheets, elevator panels, molds, nameplates, logos, and industrial components.
Can it mark stainless steel and aluminum?
Yes. HITEC Laser Large Format Fiber Laser Marking Machines can mark a wide range of metals, including stainless steel, aluminum, carbon steel, titanium, brass, copper, and other industrial metals. Depending on the material and required marking result, different laser sources, laser powers, and MOPA configurations can be selected.
Can it process elevator panels and molds?
Yes. The system is designed for large industrial applications such as elevator panels, metal sheets, molds, machine components, industrial nameplates, logos, and large metal parts. For molds and curved surfaces, HITEC also offers 3D Dynamic Laser Texturing solutions for processing 3D surfaces and complex geometries.
Can the working area be customized?
Yes. The XY working area can be customized according to the size and shape of the workpiece. HITEC can configure the gantry structure, travel range, laser power, working table, and other components to meet different production requirements, including large-format configurations such as 1300 × 2500 mm (51.2 × 98.4 in / approximately 4.3 × 8.2 ft). Custom sizes are available for specific industrial applications.
