Model: HTJ6090
Laser type: Fiber laser
Laser source brand: JPT/IPG/Raycus etc
Laser power: 50/ 60/80/100/120/200/300W
Standard working size: 600X900mm

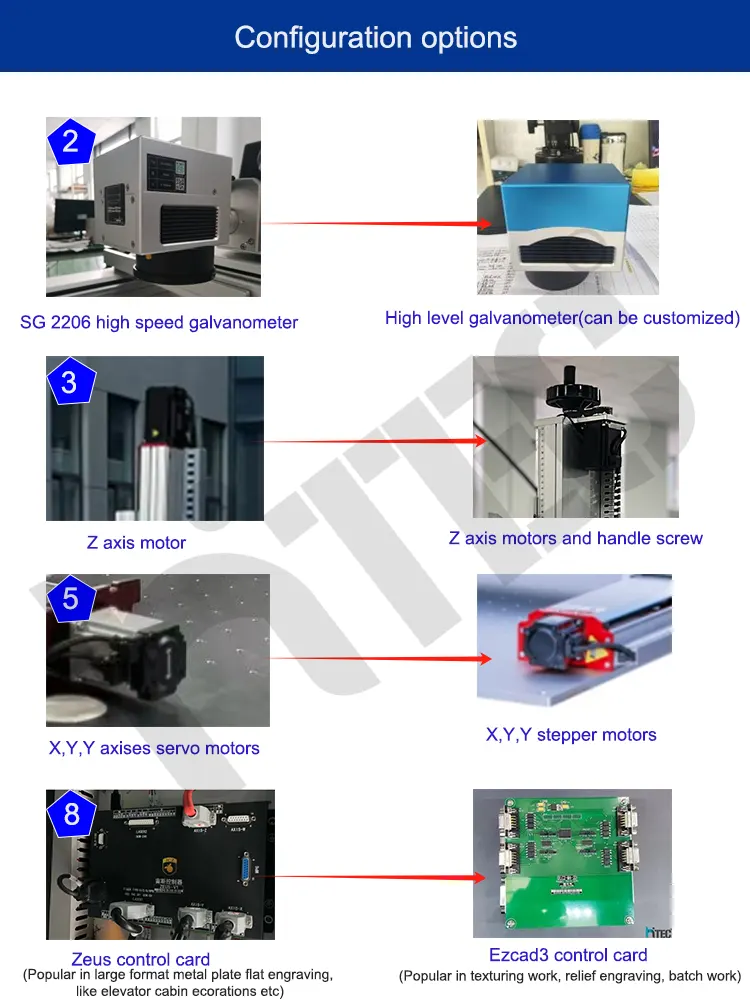

Software: Zeus/Ezcad3
Motor: AC servo motor or Stepper motor
Warranty: 2 Years
Customized service: Provided
5000$-20000$
Contact us for machine details:+86 13181737002

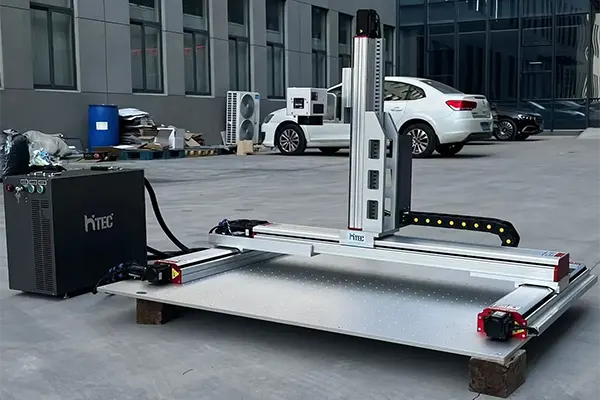

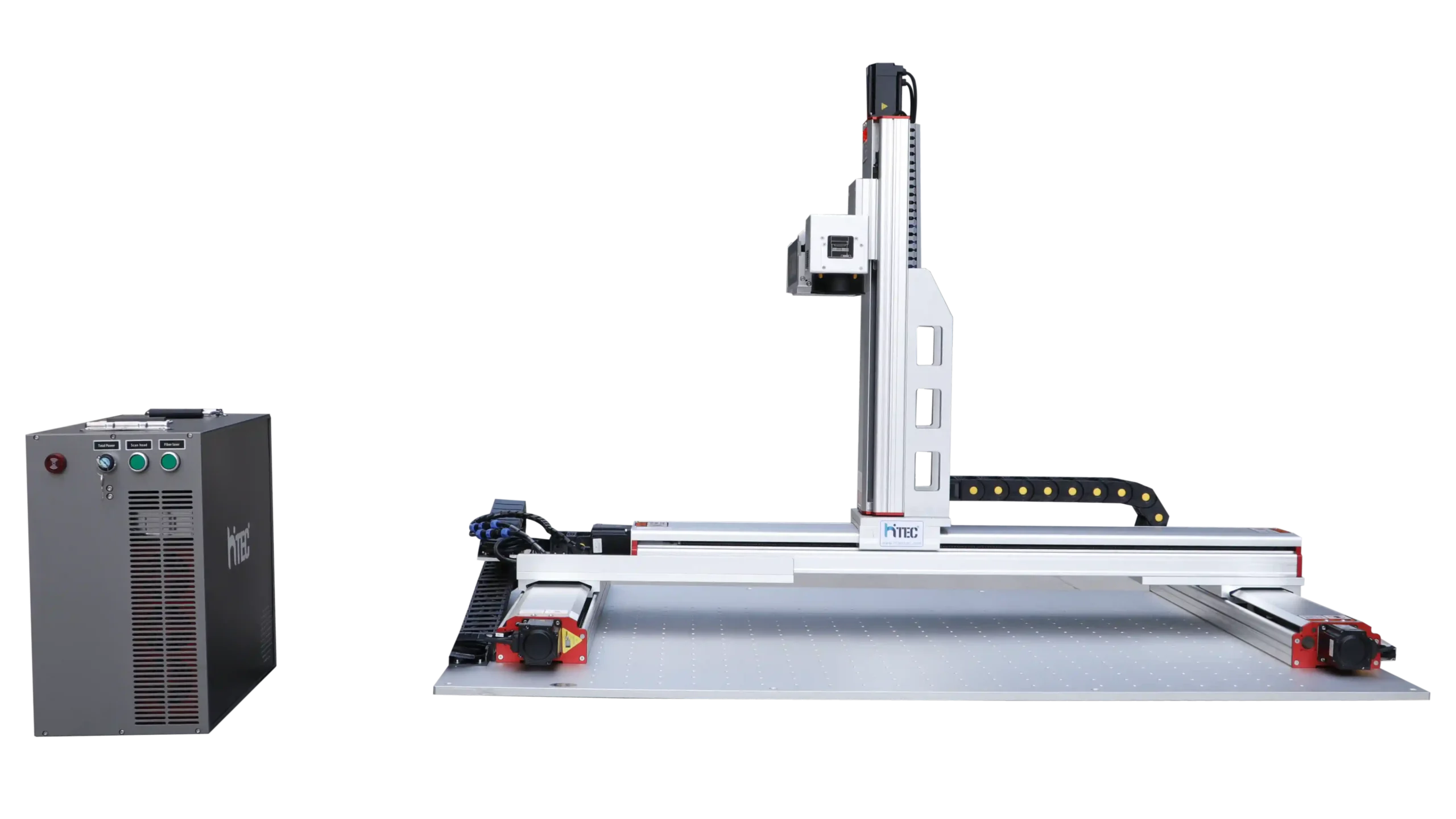

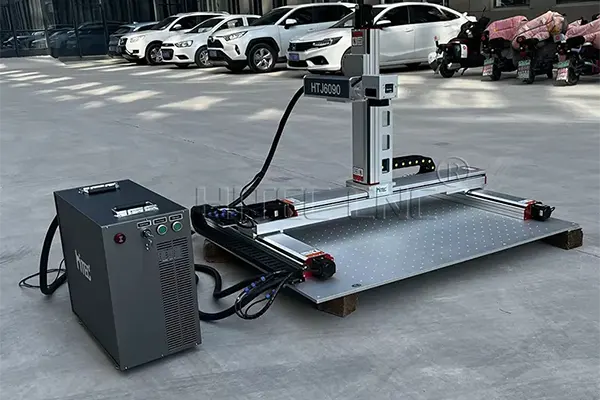

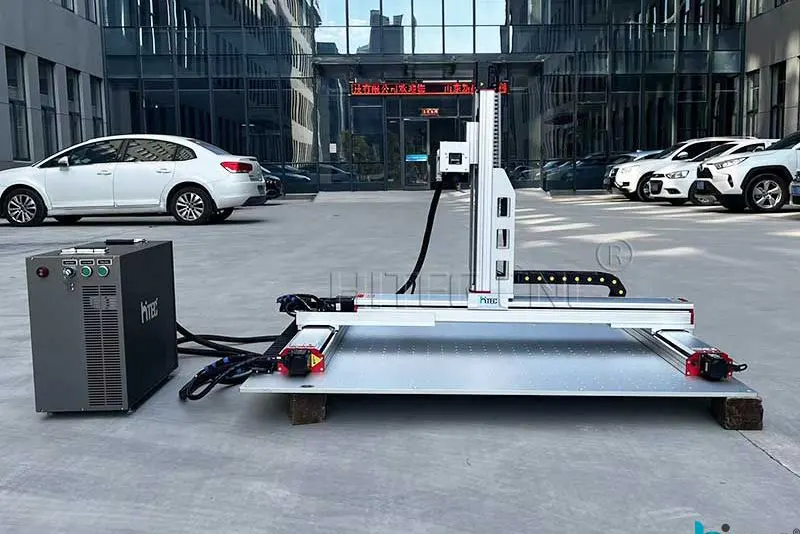

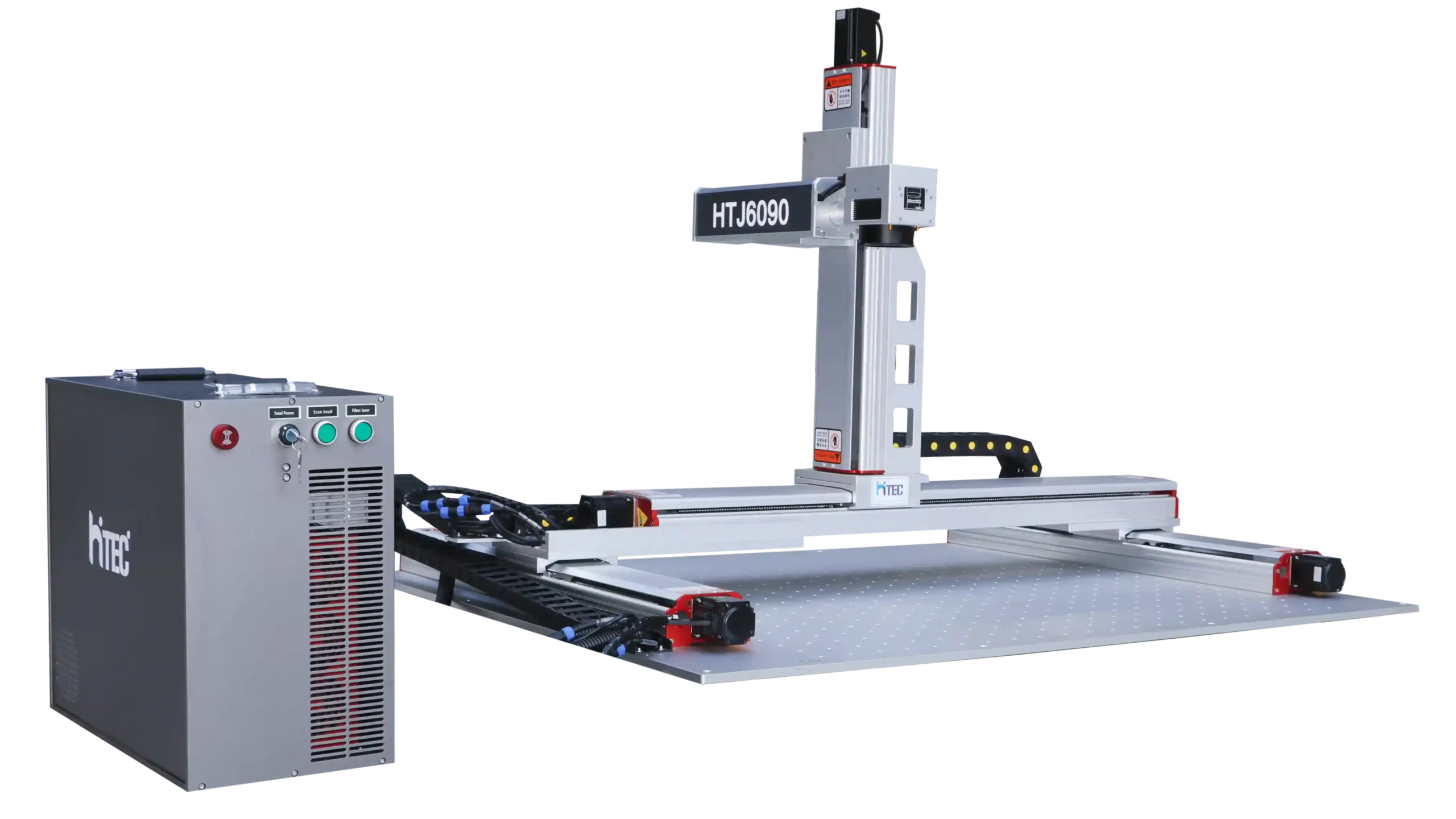

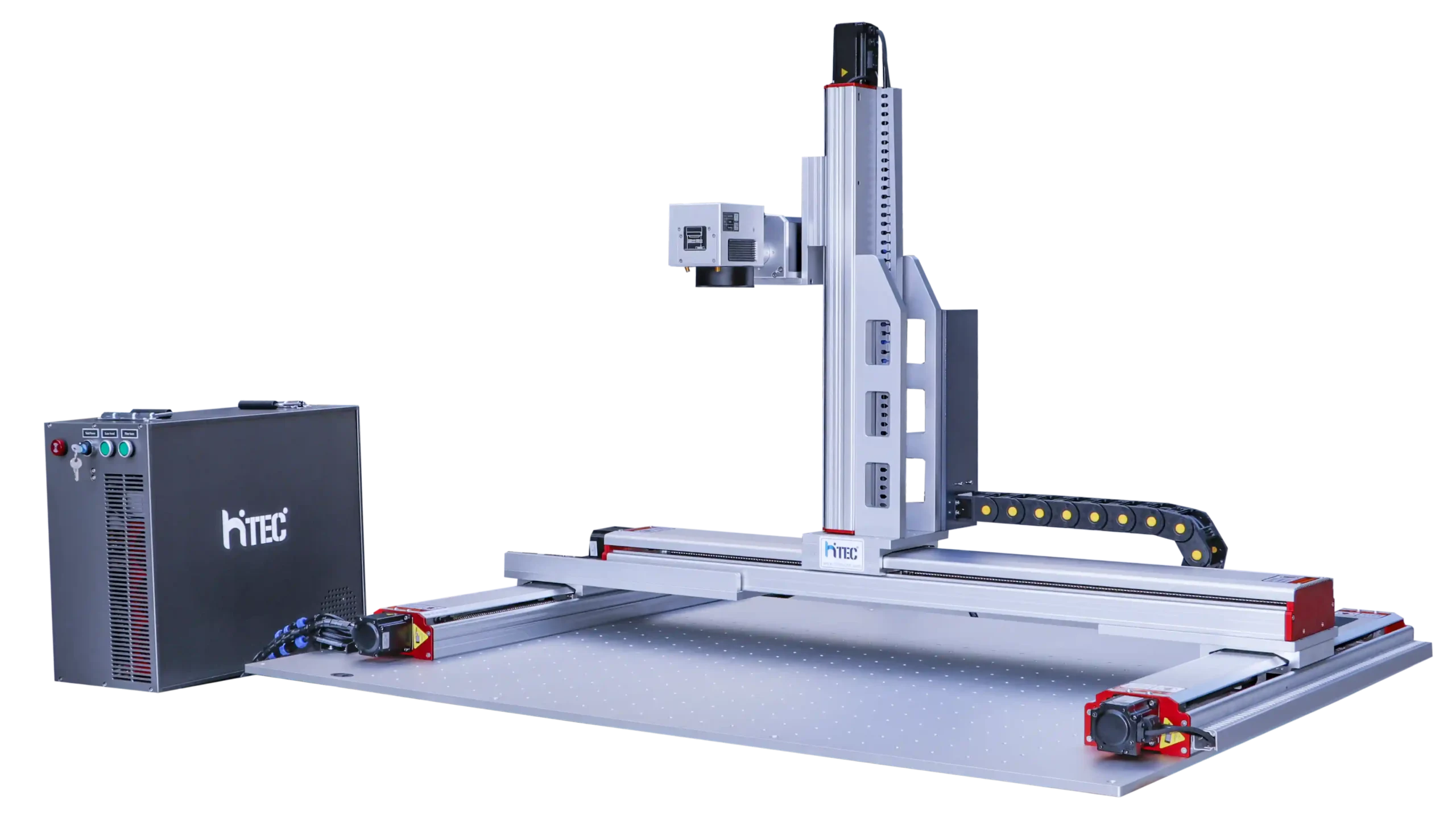

Fiber Laser XYY Moving Table for Big Size Nameplate Laser Engraving Machine
Type | HTJ6090 |
Power | 50/60/80/100/120/200/300W |
Laser Wavelength | 1064nm |
Laser Head | Original Beijing SG2206 Galvo head |
Laser Source | JPT/IPG/Raycus |
Effective Working Area of the Working Table | Standard Size: 600*900mm (The size of the worktable can be customized according to customer reguirements) |
Field Lense size | 100*100/175*175/200*200/300*300/400*400mm |
Marking Speed | 8000mm/s |
Minimum Line Width | 0.015mm |
Minimum Character | 0.2mm |
Repeated Precision | ±0.003mm |
Life-span of Fiber Laser Module | 80 000-100 000 hours |
Focus Spot Diameter | <0.01mm |
Power Stability (8h) | <±1.5%rms |
System Operation Environment | Windows XP / Windows 7 / Windows 8 / Windows 10/11 |
Cooling Mode | Air cooling–Built-in |
Working Temperature | 0℃~40℃ |
Voltage | 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH |
Power Requirement | <500W |
Warranty | 2 Years |
Certification | CE/FDA |
Marking Depth/Cutting Depth | 1 mm |
Gross Weight | 260KG |
